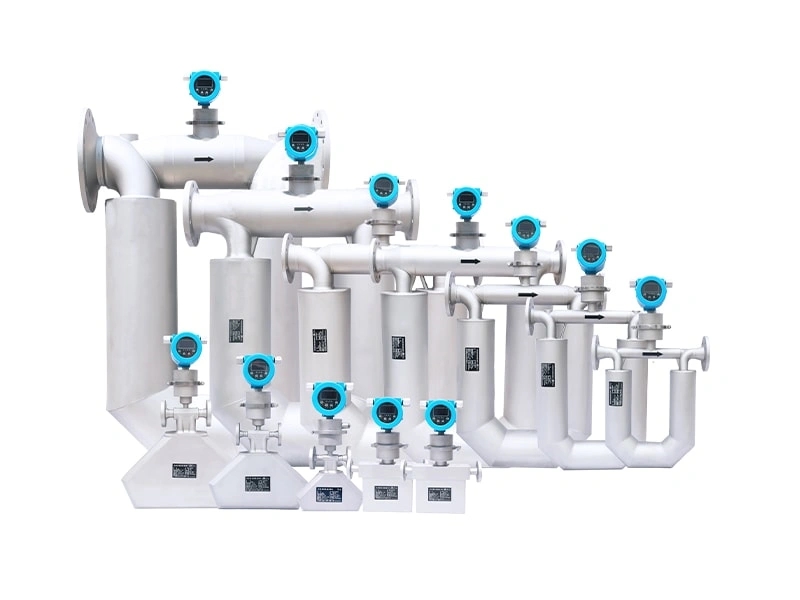

ADD VALUE K Series Coriolis mass flowmeters have unmatched high accuracy, wide turndown range, and reliable measurement stability and repeatability, broadest range of communication and connectivity options and peripheral products meet all field and cost requirements.
| Mass | |
|---|---|
| Flow Error | ±0.1%/±0.15%/±0.2%/±0.35%/±0.5% |
| Repeatability | ±0.025% |
| Density | |
| Density Error | ±0.0005g/cm³ |
| Repeatability | ±0.0001g/cm³ |
| Measuring Range | (0.2-2.0)g /cm³ |
| Electrical Parameters | ||
|---|---|---|
| Power Supply | 24VDC or 220VAC adaptive | |
| signal Way | 4-20mA, Pulse, RS485,HART Dual current or dual pulse isavailable upon request |
|
| Ambient Parameters | ||
| Ambient Temperature | (-40-60)℃ | |
| Explosion-proof | ||
| Explosion-proof Grade | Sensor | Ex ib II CT1~T6 Gb |
| Transmitter | Ex d [ ib] lIC T6 Gb | |
| Protection | ||
| Protection Class | Sensor | IP66/IP67 |
| Transmitter | IP66/IP67 | |
| Material | ||
| Measuring Tube Material | S31603;S30403;S22053;HC276; | |
| Shell Material | S31603;S30403; | |
| Power Consumption | ||
| BPM Transmitter | Maximum Power Consumption ≤ 11w | |
Yes.Standars such as ATEX,IECEx,NFPA and API requie effective static discharge during hazardous operations involving flammable materials.
Uncotrolled static discharge may cause sparks,vapor ignition,equipment damge,and serious safety incidents.
Key factors include hazardous area classification,application type,required certifications,and system integration requirements.
We are manufacturer with our own production and engineering team,proving direct factory support to global customers.
Our products are export to militiple regions,including Europe,the Middle East,Southeast Asia,and other international markets.
MOQ depends on the product modle and configuration.For most industrial products,small-quantity orders are acceptable.
