A mobile static grounding system, offering flexible electrostatic protection for various applications.

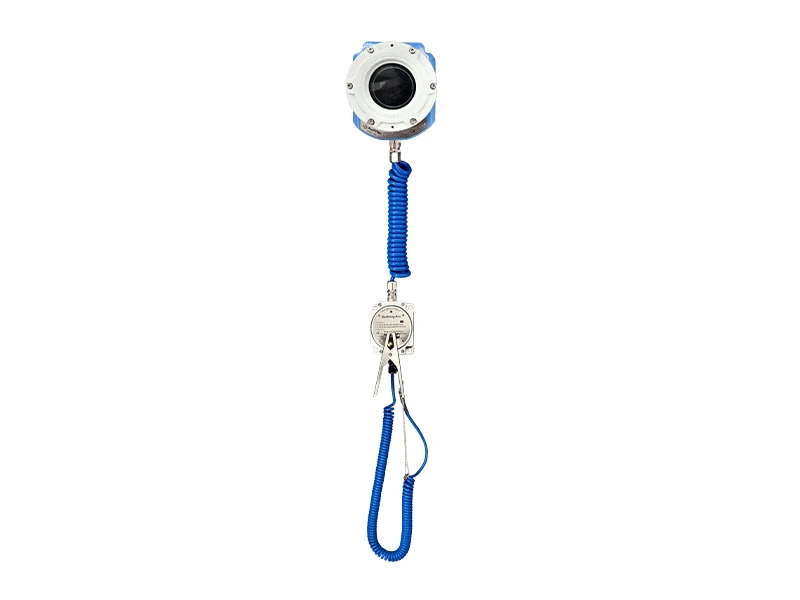

Earthing Pro MV is a static grounding controller fixed to the tanker truck, offering flexible mobility while utilizing a triple-verification working principle to ensure effective static discharge during loading and unloading operations. The working principle is as follows:
The grounding wire connects the device to the tanker truck, ensuring the stability of the grounding system, with a design that allows for easy relocation to meet various operational needs.
The static grounding clamp directly connects to the earth, forming a low-resistance grounding loop to ensure quick and efficient discharge of static electricity into the ground, and the device can be easily moved to different locations for operation.
The system verifies the true connection to earth, the connection between the static grounding clamp and the tanker truck, and the grounding loop resistance (below 10Ω) to ensure the efficiency and safety of the grounding system.
With these steps, Earthing Pro MV provides mobile static grounding protection and continuously monitors and verifies the grounding status, ensuring static safety during the tanker truck loading and unloading process.
Dedicated vehicle-mounted design
Seamless integration with vehicle power systems
Continuous grounding monitoring
High-visibility visual and audible alarms
Rugged enclosure for mobile and outdoor environments
Quick deployment across multiple locations
Ground continuity monitoring
Alarm output (model dependent)
DC power supply from vehicle electrical system

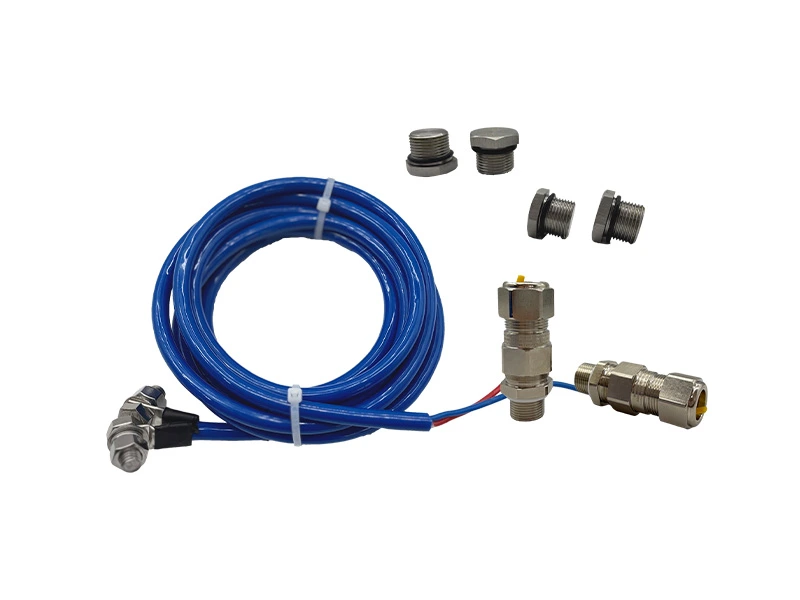

Industrial-grade connectors and grounding cables
Earthing Pro MV is designed for vehicle-mounted mobile grounding applications.
For fixed loading bays requiring true earth verification and interlock control, Earthing Pro GE systems are recommended.
|
Ground Resistance Threshold |
≤ 10 Ω (typical) |
|
Certification |
II2(1)G Ex db ia [ia Ga] IIC T6 Gb II2(1)D Ex ia tb [ia Ga] IIIC T80℃ Db |
|
Outputs |
On-off signal,10A 250VAC/5A 30VDC |
|
Supply Voltage |
24V~60V or 85V~250V |
|
Operating Temperature |
-20 °C to +60 °C |
Earthing Pro MV is suitable for the following scenarios:
Tanker Loading/Unloading: Fixed on the tanker truck (Track), ensuring effective static discharge during hazardous material loading and unloading, preventing fire or explosion risks.
Mobile Applications: Due to its mobility, it is ideal for static grounding protection in various operational environments, ensuring electrostatic safety in different working conditions.
Chemical Transport and Storage: Used in hazardous material tanker trucks, storage tanks, or containers, providing reliable static grounding solutions during chemical transport and storage operations.
Liquid and Gas Loading/Unloading: Suitable for liquid and gas product loading/unloading operations, ensuring static discharge and safe management to avoid static accumulation.
Multi-Environment Operations: Its flexibility makes it ideal for different working scenarios, such as warehouses, fueling stations, or industrial pipeline systems, providing static protection.
Yes.Standars such as ATEX,IECEx,NFPA and API requie effective static discharge during hazardous operations involving flammable materials.
Uncotrolled static discharge may cause sparks,vapor ignition,equipment damge,and serious safety incidents.
Key factors include hazardous area classification,application type,required certifications,and system integration requirements.
We are manufacturer with our own production and engineering team,proving direct factory support to global customers.
Our products are export to militiple regions,including Europe,the Middle East,Southeast Asia,and other international markets.
MOQ depends on the product modle and configuration.For most industrial products,small-quantity orders are acceptable.
