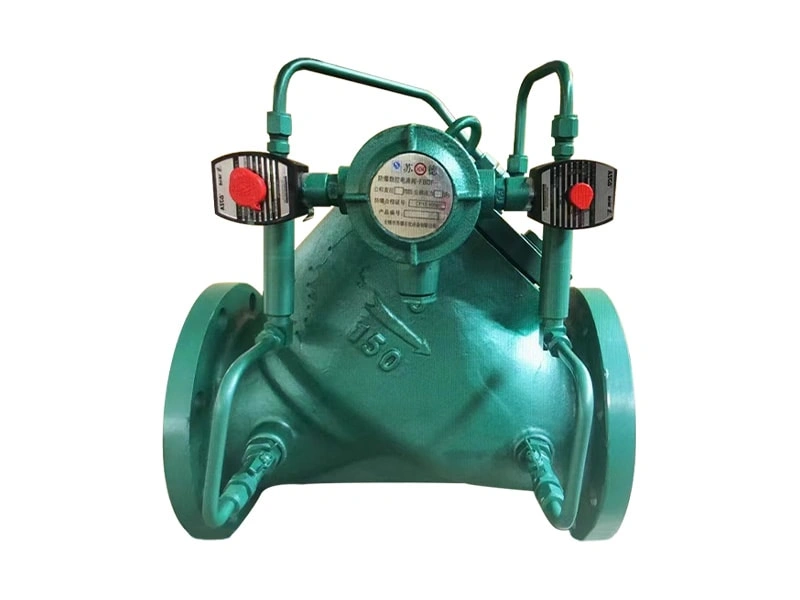

Piston Control Vales

Get Demo Video Download Datasheet

Get a Quote

01

Stable and reliable, with a service life of over 100,000 cycles.
02

Adjustable opening and closing speed, eliminating "water hammer".
03

Can be controlled automatically or manually, with no need for a bypass loop.

04

Power supply options: AC 220V or DC 24V.
05

Flexible operation, simple structure, and easy maintenance.
06

Can be installed horizontally or vertically; piston-type valve has a wider application range than diaphragm-type electro-hydraulic valves.

07

Suitable for pipeline delivery control of liquid and gaseous products, including petroleum, chemicals, water, natural gas, and liquefied gas.
08

Controlled by a controller, with stepless opening and closing, ensuring constant flow and compensation.

Note: The D and D1 standards in the table are GB/T 1.6MPa RF (other specifications are available upon request)

Working Medium	Gas, Liquefied Gas, Petroleum, Chemicals, Water, Foam, Steam
Medium Temperature	-20C~+80℃	-40℃~+80℃	-18℃~150℃
Working Pressure(Mpa)	0.01~1.6	0.02~2.5	0.04~5.0
Input Power	AC:220V±10% DC:24V±10%
Maximum Operating Current	AC:70mAx2 DC:500mAx2
Power	AC:220V-15W DC:24V-12W
Size(DN)	32、40、50、80、100、150、200、250
Service Life	>100000times
Certification	ExdllBT4

Is static grounding required by international standards?

Yes.Standars such as ATEX,IECEx,NFPA and API requie effective static discharge during hazardous operations involving flammable materials.

What happens if static electricity is not properly dischanged?

Uncotrolled static discharge may cause sparks,vapor ignition,equipment damge,and serious safety incidents.

How do I choose the right static grounding sysrem?

Key factors include hazardous area classification,application type,required certifications,and system integration requirements.

Are you a manufacturer ot a trading company?

We are manufacturer with our own production and engineering team,proving direct factory support to global customers.

Which countries or regions do you mainly export to?

Our products are export to militiple regions,including Europe,the Middle East,Southeast Asia,and other international markets.

What is your MOQ?

MOQ depends on the product modle and configuration.For most industrial products,small-quantity orders are acceptable.
