Clamps and Cables

Get Demo Video Download Datasheet

Get a Quote

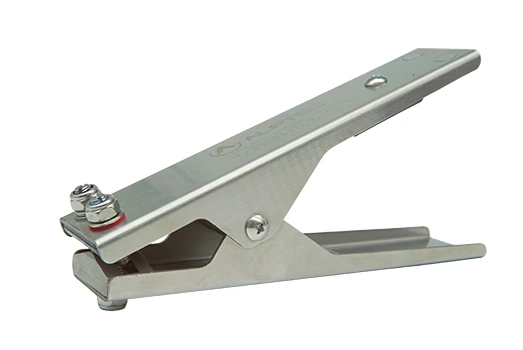

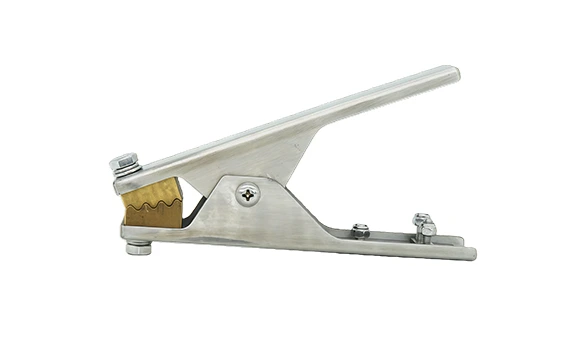

Clamps:

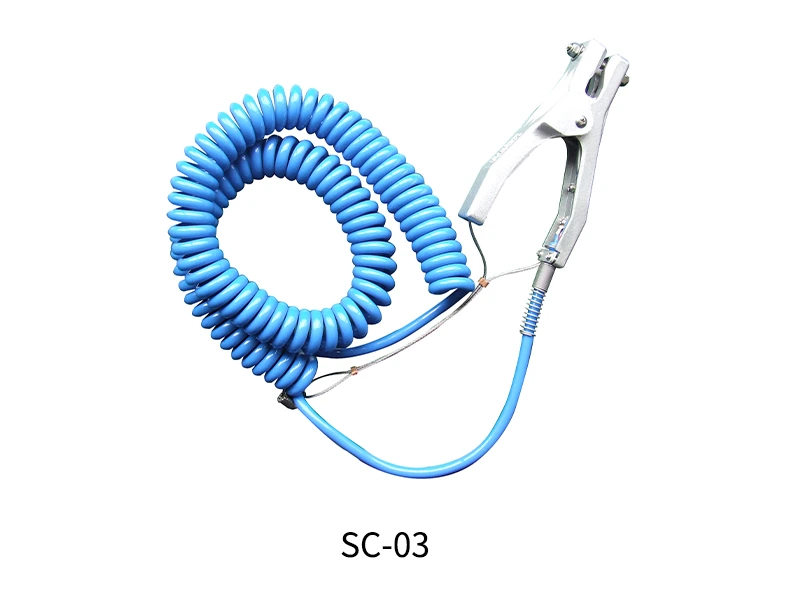

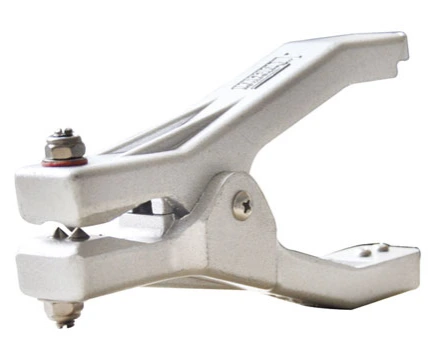

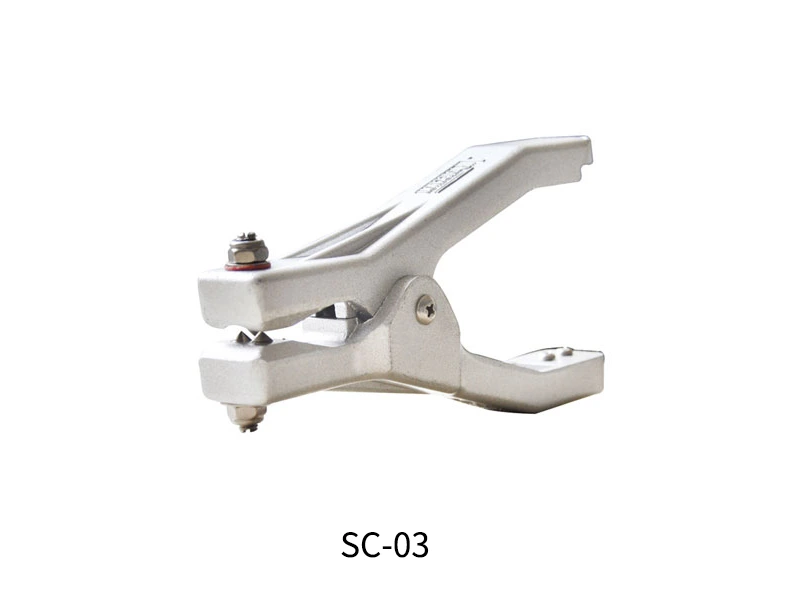

Option 1: SC-03	Body: Copper-free aluminium (cast)
Weight: 0.3 kg	Paint-piercing pins: 3×tungsten carbide
Max. Opening: 30 mm	Dimensions (L×W×H): 160×90×45 mm
Option 2: SC-08	Body: 304 stainless steel
Weight: 0.38 kg	Paint-piercing pins: 3×tungsten carbide
Max. Opening: 26 mm	Dimensions (L×W×H): 205×100×43 mm
Option 3: SC-09	Body: 304 stainless steel
Weight: 0.25 kg	Paint-piercing pins: 2×copper alloy
Max. Opening: 12 mm	Dimensions (L×W×H): 140×80×23 mm
Option 4: SC-10	Body: 304 stainless steel
Weight: 0.32 kg	Paint-piercing pins: 3×tungsten carbide
Max. Opening: 20 mm	Dimensions (L×W×H): 170×82×38 mm

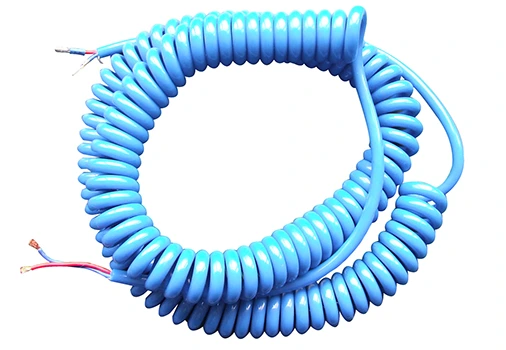

Cables:

Cable jacket	Polyether-based TPU
Conductors	2 x 1.5 mm² copper
Optional lengths	3 m, 7 m, 10 m, 13 m, 15 m, or customized-length spiral cable

Is static grounding required by international standards?

Yes.Standars such as ATEX,IECEx,NFPA and API requie effective static discharge during hazardous operations involving flammable materials.

What happens if static electricity is not properly dischanged?

Uncotrolled static discharge may cause sparks,vapor ignition,equipment damge,and serious safety incidents.

How do I choose the right static grounding sysrem?

Key factors include hazardous area classification,application type,required certifications,and system integration requirements.

Are you a manufacturer ot a trading company?

We are manufacturer with our own production and engineering team,proving direct factory support to global customers.

Which countries or regions do you mainly export to?

Our products are export to militiple regions,including Europe,the Middle East,Southeast Asia,and other international markets.

What is your MOQ?

MOQ depends on the product modle and configuration.For most industrial products,small-quantity orders are acceptable.
